QS-TP1
The pro in traction loss.
QS-TP1 Traction Pro is a traction loss platform that puts the rear of the car under you. It moves in surge and yaw, so you feel oversteer, braking and the road.
Price
€5,615 - €7,600
Self-assembly kit €5,615, pre-assembled €7,600, both with the QS-210 actuator set.
Not included: cockpit, seat, and the QS-MC6 controller (unless you already have one).
Tax and duty not included.
At SimRacing Expo, at all three partner booths
- Telemetry to motion
- <8ms
- Surge and yaw
- 2DOF
- Yaw velocity
- 100°/s
- Max. payload, Heavy Duty
- 250kg
The rear lets go, and you catch it
Every lap has a moment when the rear loosens, the car begins to rotate, and there is still time to catch it. QS-TP1 puts that moment under you: the whole cockpit swings around its nose, the way the car does.
Oversteer
You feel the slide through the seat, with up to ±8.0° of yaw at up to 100°/s in Performance mode.
Braking and acceleration
You feel braking and acceleration as weight moving through the seat, with ±30 mm of surge at up to 400 mm/s in Performance mode.
The road
Curbs and the changing surface under the wheels come through the platform itself.
On its own, or under a QS-210 or QS-220 set
Two actuators run the length of the frame and the front of the platform is a pivot. When both actuators move the same way, the cockpit moves lengthwise. When they move in opposite directions, the rear swings around the pivot. Start with the cockpit on top and add a QS-210 or QS-220 set later, without replacing anything.
QS-TP1 with a cockpit
Two axes: traction loss in yaw, braking and acceleration in surge, road harshness and rumble strips from the platform itself. Runs on its own with a QS-MC6 controller, sold separately.

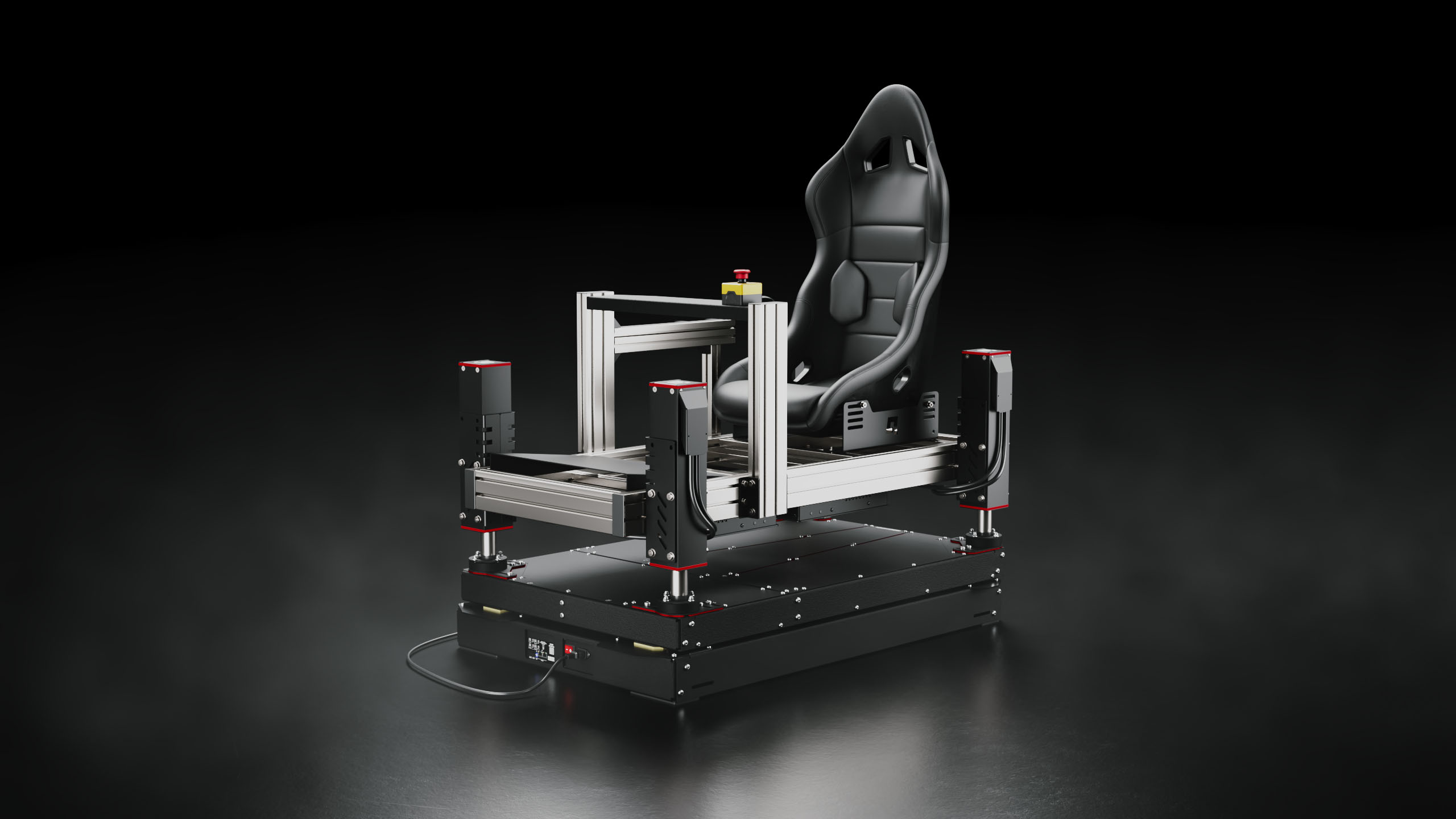

Under a QS-210 or QS-220 set
With a 3DOF set, five axes in total: the set lifts, pitches and rolls the car body, and QS-TP1 underneath adds surge and yaw. A 2DOF set works too, but only in Heavy Duty mode. Runs on the QS-MC6 you already have.
Kit or pre-assembled
Build it yourself from three cartons plus the actuator set, or order it pre-assembled and tested at the factory. The specification is the same.
Try QS-TP1 at the show
At SimRacing Expo, ask the team at our partners’ booths for a few laps. Keep driving and you will feel the slide as it starts. It will no longer surprise you.
Pair it with QS-BT1 and the forces split between two systems: QS-TP1 moves the platform under you in surge and yaw, the belts work on your shoulders and chest.
The other products
- QS-HVS62Pre-launch previewEight vibration channels from one device, driven by game telemetry. At the show, only at SimUltimate.
- QS-GC3Pre-launch previewSustained braking and acceleration, from the cushion of your seat.
- QS-BT3Sneak peekNot at the expoA belt tensioner. One direct-drive motor pulls both shoulder straps of your harness.
Specifications
Motion
- Architecture
- 2DOF, surge and yaw
- Yaw
- ±8.0°
- Surge
- ±30 mm
- Latency
- <8 ms
- Max. payload
- 250 kg
Size and fit
- Dimensions (L × W × H)
- 1271 × 850 × 273.4 mm
- Required footprint
- About 1.5 m²
- Cockpit width
- 540-756 mm
- Actuator stroke
- 60 mm
Power and control
- Power supply
- 120/230 VAC ±10%
- Controller
- QS-MC6
- Software
- Qubic Manager (Windows)
- Warranty
- 2 years personal, 1 year commercial
