QS-220-PL - Qubic System Simulator

QS-220-PL

Innovative technology, modular and compact design, as well as the extremely quiet operation makes the QS-220-PL as a perfect motion base not only for professional application but also for home users in various types of cockpits. Additional sets of QS-220-PL can be configured as a 4 and 6 actuated system to provide 3 / 4 / 6DOF using dedicated cockpits from Qubic System product line.

3,700.007,250.00

(tax and duty not incl.)

QS-220-PL

Innovative technology, modular and compact design, as well as the extremely quiet operation makes the QS-220-PL as a perfect motion base not only for professional application but also for home users in various types of cockpits. Additional sets of QS-220-PL can be configured as a 4 and 6 actuated system to provide 3 / 4 / 6DOF using dedicated cockpits from Qubic System product line.

CHECK OUR TOP DISTRIBUTORS

WHERE TO BUY

INTRO SET

2DOF CONFIGURATION

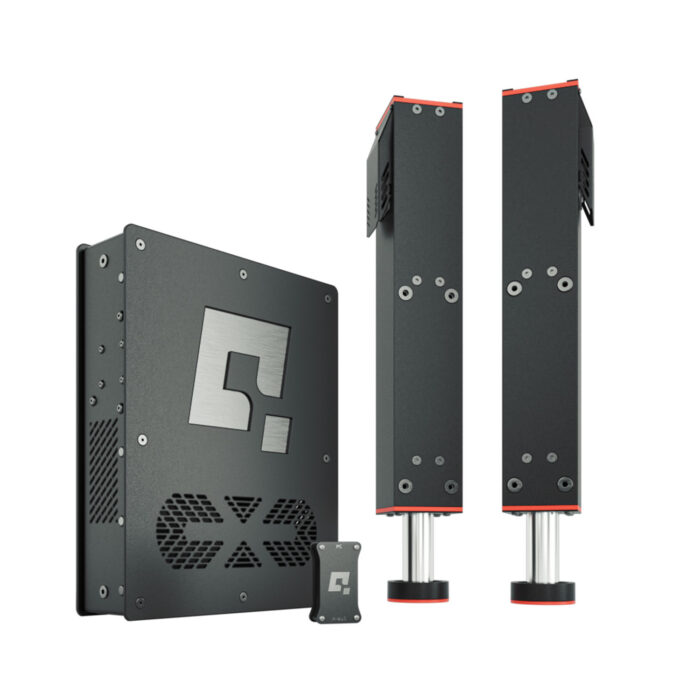

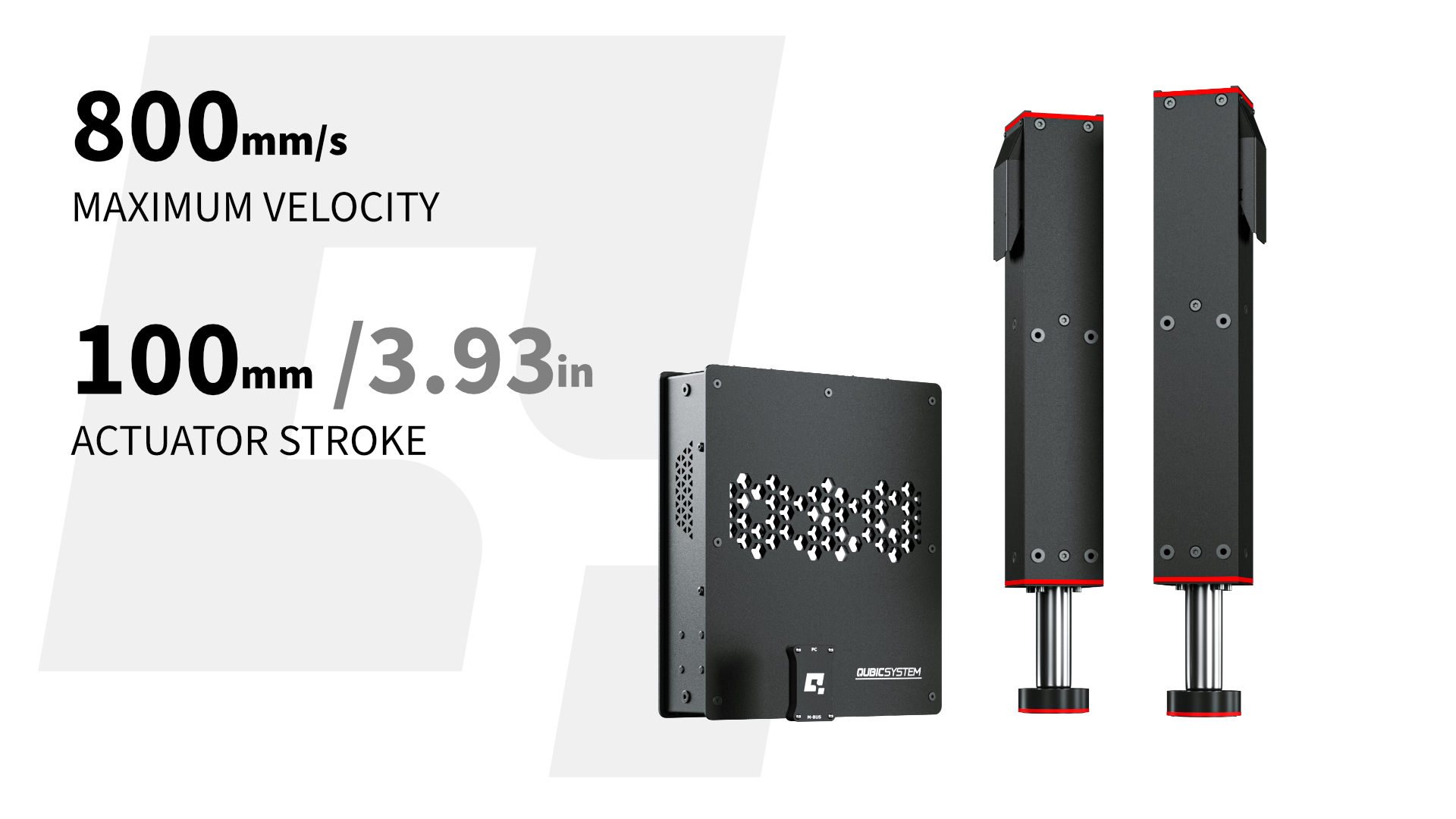

The QS-220-PL Intro Set consisting of two actuators, power cabinet and motion controller (QS-MC6) is the perfect solution for all drivers who start their adventure with simracing and want to come into the virtual world of competition or need a 2DOF as a first motion platform. Undoubtedly, one of the greatest advantages of the Qubic System brand is the ability to seamlessly expand the motion system with additional actuators kit, quickly and easily creating extraordinary and original motion cockpits in a 3DOF configuration or even 6DOF with additional special designed accessories.

3,700.00

(tax and duty not incl.)

WHERE TO BUY

INTRO SET

2DOF CONFIGURATION

The QS-220-PL Intro Set consisting of two actuators, power cabinet and motion controller (QS-MC6) is the perfect solution for all drivers who start their adventure with sim racing and want to come into the virtual world of competition or need a 2DOF as a first motion platform. Undoubtedly, one of the greatest advantages of the Qubic System brand is the ability to seamlessly expand the motion system with additional actuators kit, quickly and easily creating extraordinary and original motion cockpits in a 3DOF configuration or even 6DOF with additional special designed accessories.

3,700.00

(tax and duty not incl.)

WHERE TO BUY

EXTENDED SET

3DOF CONFIGURATION

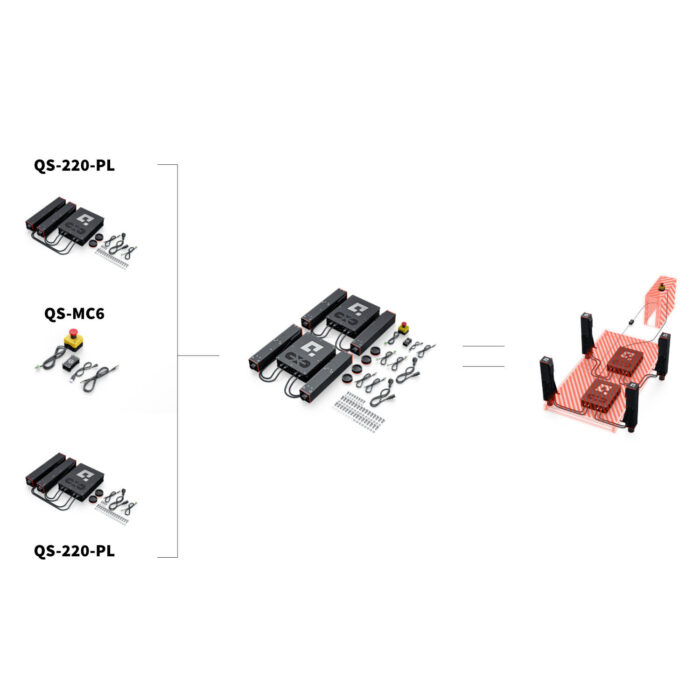

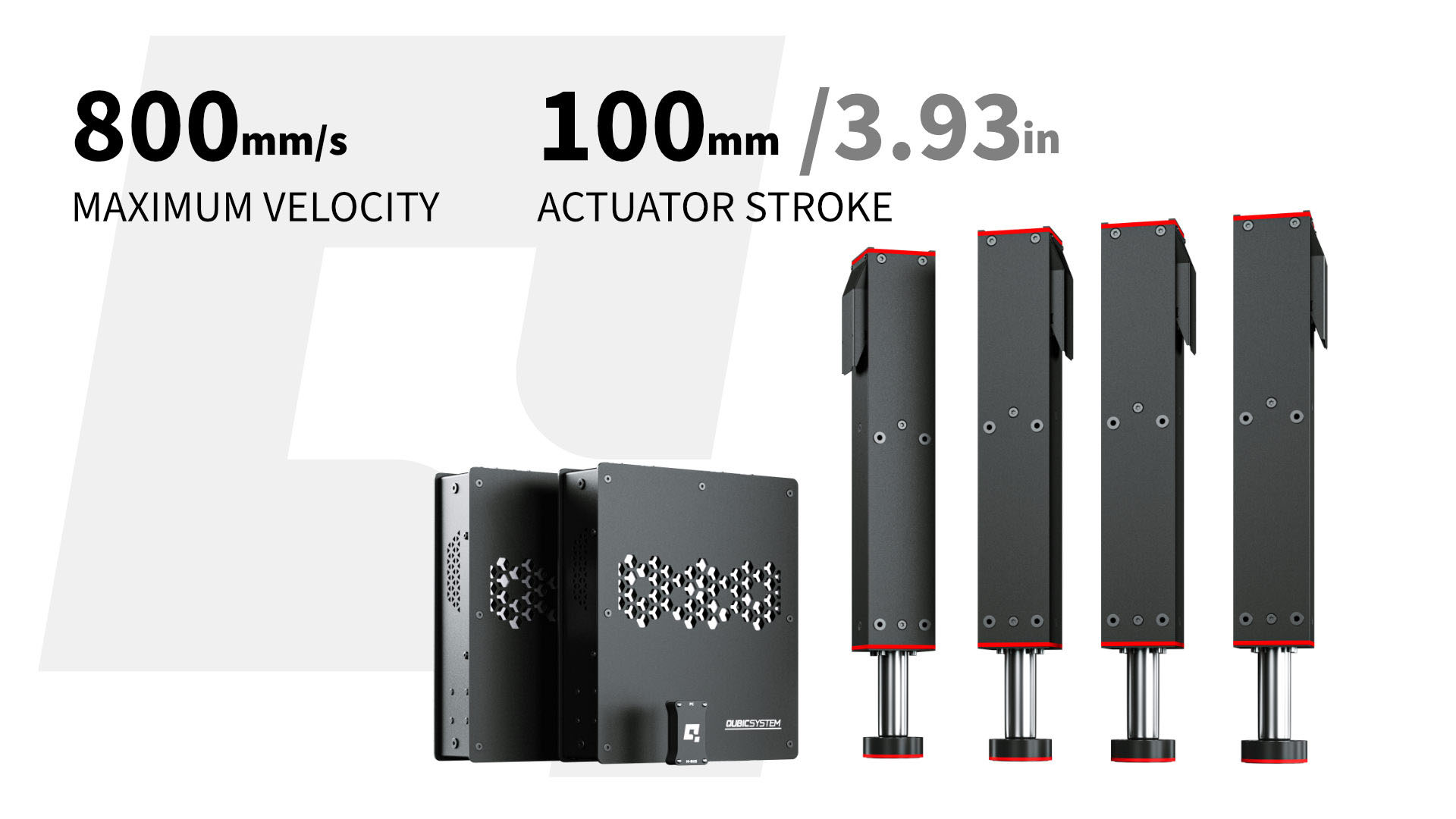

QS-220-PL Extended Set consisting of four actuators, two power cabinets and one motion controller. The 3DOF configuration is dedicated to all racers who expect the most realistic and precise simulation. Incredible levels of vehicle feedback to the driver allows feeling exactly what the vehicle is doing in real time. During the competition, drivers can feel every possible detail noticeable in a real race (including motor vibrations, road surface, bumps, shunting effects etc.) Due to 3DOF set you can feel like at real racing session directly from your home.

7,250.00

(tax and duty not incl.)

WHERE TO BUY

EXTENDED SET

3DOF CONFIGURATION

QS-220-PL Extended Set consisting of four actuators, two power cabinets and one motion controller. The 3DOF configuration is dedicated to all racers who expect the most realistic and precise simulation. Incredible levels of vehicle feedback to the driver allows feeling exactly what the vehicle is doing in real time. During the competition, drivers can feel every possible detail noticeable in a real race (including motor vibrations, road surface, bumps, shunting effects etc.) Due to 3DOF set you can feel like at real racing session directly from your home.

7,250.00

(tax and duty not incl.)

WHERE TO BUY

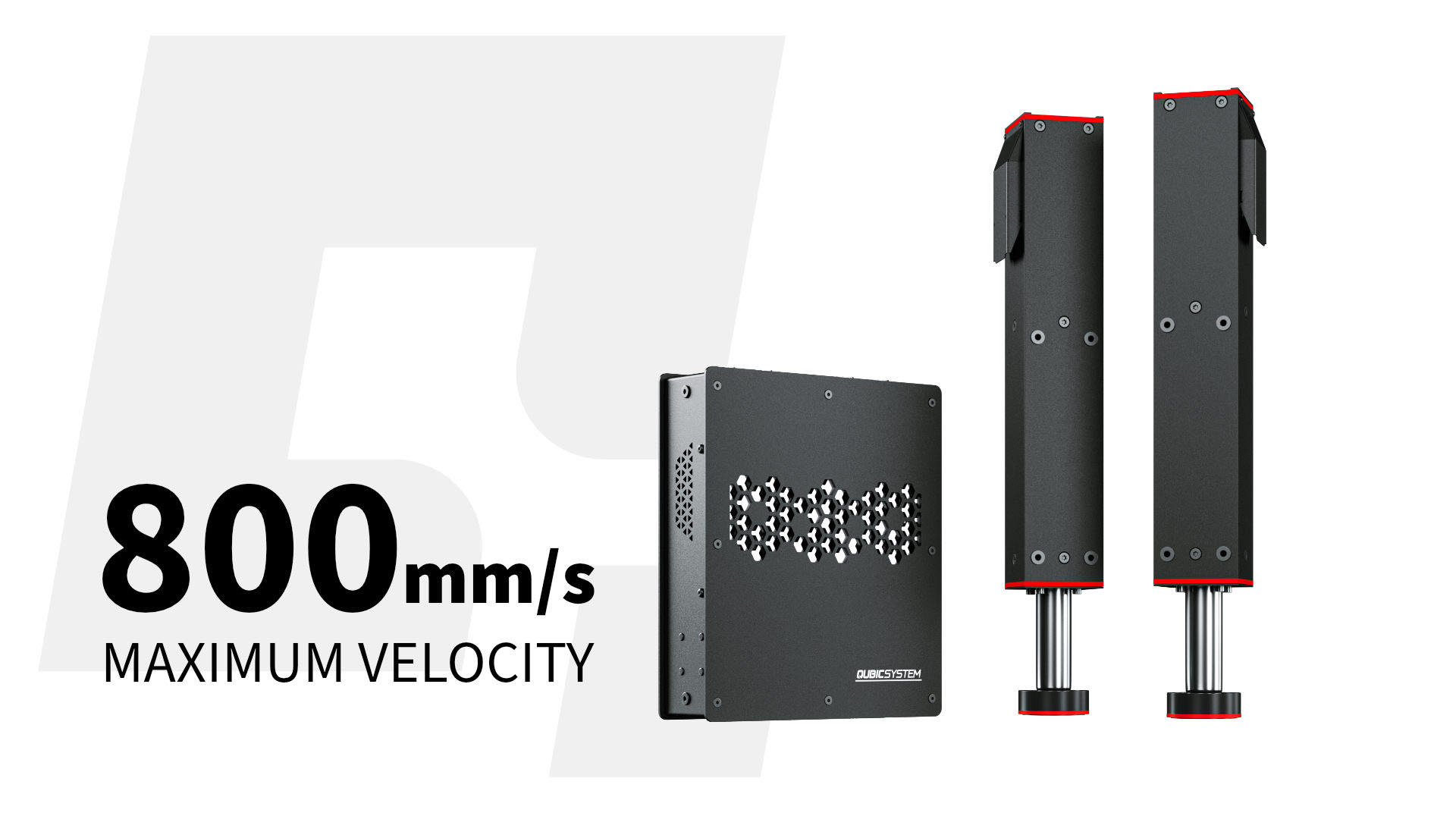

UPGRADE SET

UPGRADED FROM 2DOF-3DOF

QS-220-PL is designed with upgradability in mind – it is possible to expand your Intro set with another 2 actuators and the power cabinet later. For building your extraordinary motion rig you don’t need an extra PC connector, just connect power cabinets directly to each other. Expand your motion form 2DOF to 3DOF configuration. Additional heave axis delivers oversteer and understeer sensation and gives you more realistic and precise driving experiences.

3,550.00

(tax and duty not incl.)

WHERE TO BUY

UPGRADE SET

UPGRADED FROM 2DOF-3DOF

QS-220-PL is designed with upgradability in mind – it is possible to expand your Intro set with another 2 actuators and the power cabinet later. For building your extraordinary motion rig you don’t need an extra PC connector, just connect power cabinets directly to each other. Expand your motion form 2DOF to 3DOF configuration. Additional heave axis delivers oversteer and understeer sensation and gives you more realistic and precise driving experiences.

3,550.00

(tax and duty not incl.)

WHERE TO BUY

SETUP AND VARIANTS

QS-220-PL

INTRO SET – 2DOF –  FRONT VARIANT

QS-220-PL

INTRO SET – 2DOF –  BACK VARIANT

QS-220-PL

EXTENDED SET – 3DOF

SET HIGHLIGHTS

QS-220-PL SET HIGHLIGHTS

Maximum velocity: 800 mm/s
Maximum acceleration: 0.8 G
Actuator stroke: 100 mm

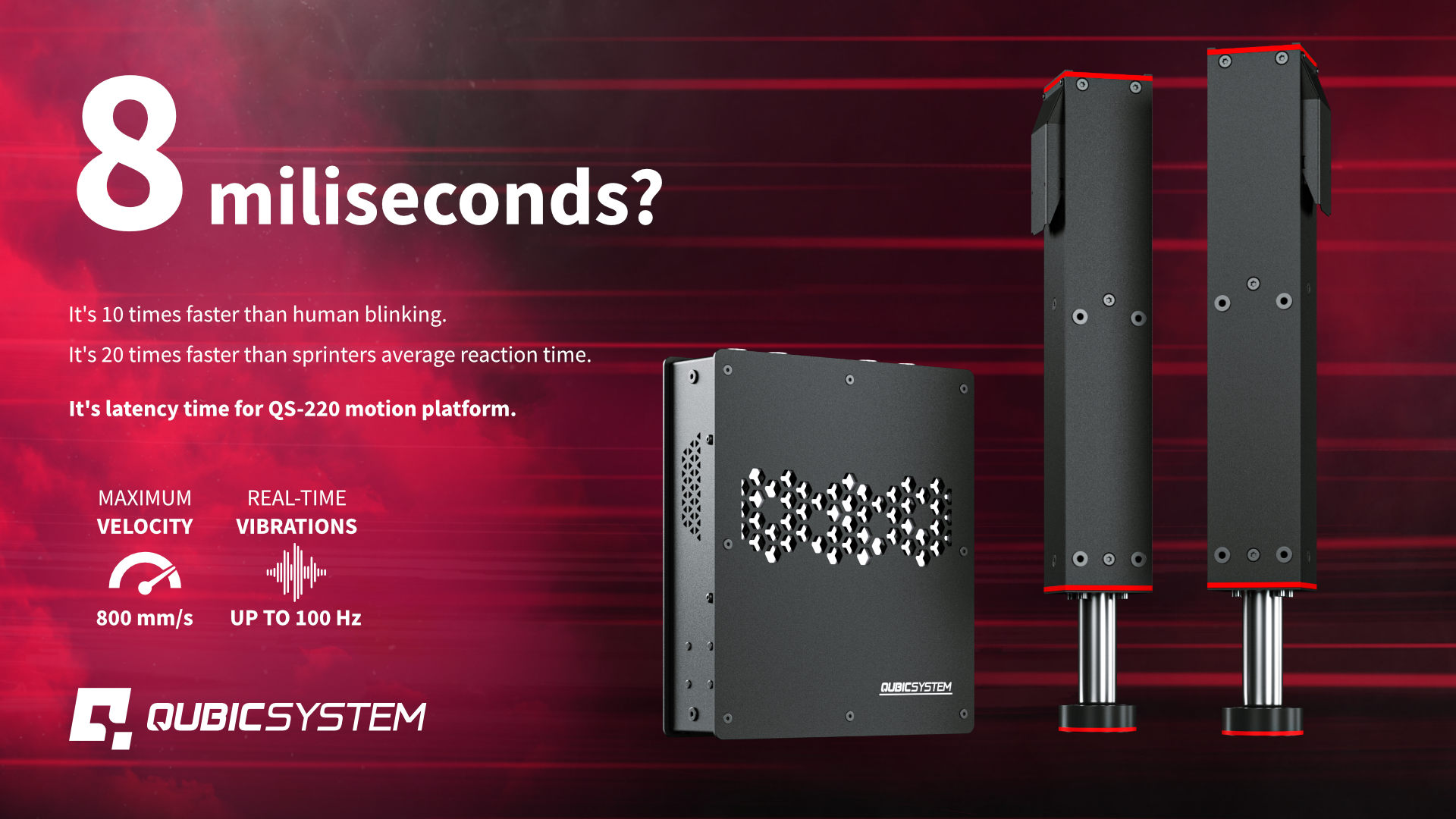

Latency: <8 ms
Maximum control frequency: 1000 Hz
Vibration frequency range: 0-100 Hz

QS-220-PL SET KEY FEATURES

Proudly made in EU: Engineered, Designed and Manufactured in Poland
Super silent – extremely quiet operation
Used by professional race car drivers and pilots around the world
Top quality ecosystem for personal and commercial applications
Supported by dedicated software QubicManager: motion adjustment, motion post-processing, extensive diagnostic or easy and fast use of predefined profiles
VR HeadWay technology support (VR sickness compensation)
Over 80+ integrated and supported racing and flight games
Compatible with professional simulation applications – Motion SDK (FSMI or FSDI) for software developers

Box 1. QS-220-PL motion set:
2x QS-L1 – linear actuator with cup holder
1x QS-SB2 – power cabinet (control module)
1x QS-SBML-2 – motion lock cable (up-link/down-link) – 2 m long
1x Power cable

Box 1. Dimensions
71 cm x 53 cm x 16 cm | 27.9 in x 20.9 in x 6.3 in

Box 1. Weight
30 kg| 66.14 lb

Box 2. QS-MC6 controller set:
1x QS-SBML-1 – motion lock with additional 2 m long cable
1x QS-MBT-1 – M-BUS terminator
1x USB cable – 0,5 m long cable (USB micro B)
1x CAT.5E patch cord cable – 2 m long

Box 2. Dimensions
20 cm x 20 cm x 13 cm | 7.9 in x 7.9 in x 5.1 in

Box 2. Weight
1 kg | 2.2 lb

GENERAL SPECIFICATION OF QS-220-PL SET

Architecture: 2 / 3 / 4 / 6 DOF (depending on user configuration and number of modules)
Actuator stroke: 100 mm | 3.93 in

Maximum velocity:
Q-Mode (230V): 800 mm/s
◦ Performance Mode (115V/230V): 400 mm/s
◦ Heavy Duty Mode (115/230V): 300 mm/s

Maximum acceleration:
Q-Mode (230V): 0.8G*
◦ Performance Mode (115V/230V): 0.7G*
◦ Heavy Duty Mode (115/230V): 0.4G*
*value of acceleration is limited for safety reasons

Recommended payload in 3DOF (2x QS-220-PL) configuration:
◦ Q-Mode: 200 kg
◦ Performance Mode: 250 kg
◦ Heavy Duty Mode: 350 kg

Vibrations frequency range: 0-100 Hz
Maximum control frequency: 1000 Hz
Latency: <8 ms

Product weight: 30 kg | 66 lb

MAIN DIMENSIONS
Total length: QS-L1: 90 mm | 3.55 in, QS-SB2: 385 mm | 15.16 in
Total width: QS-L1: 90 mm | 3.55 in, QS-SB2: 300 mm | 11.81 in
Total height: QS-L1: 553-653 mm | 22-26 in, QS-SB2: 88 mm | 3.46 in

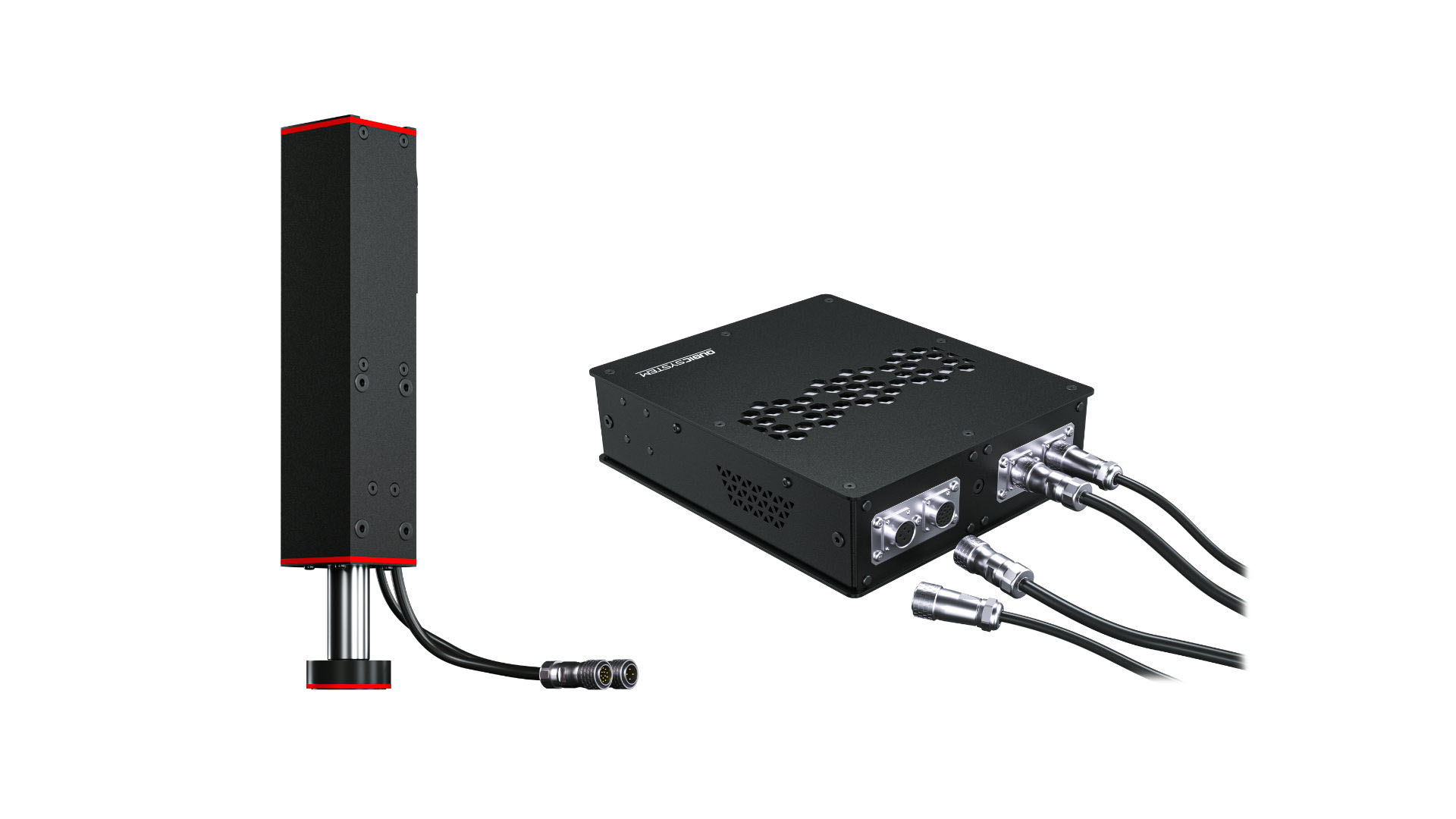

Cable length (QS-L1 actuator – QS-SB2 Power cabinet): 1150 mm | 45.2 in

POWER REQUIREMENTS
Power supply requirements: 115/230 VAC Single Phase
Average power consumption in 3DOF configuration:
◦ Q-Mode: 260W (230V)
◦ Performance Mode: 280W (230V), 270W (115V)
◦ Heavy Duty Mode: 436W (230V), 462W (115V)

Peak current for breaker specification in 3DOF configuration:
◦ Q-Mode: 5.17A (230V)
◦ Performance Mode: 4.55A (230V), 7.35A (115V)
◦ Heavy Duty Mode: 5.88A (230V), 9.89A (115V)

Connection: USB

PRODUCT CARD

Even most advanced hardware is nothing without good software. QubicManager powered by Motion Systems company is professional and specialized software for the platform and is click and play compatible with all major racing and flight titles on PC and constantly updated to support new applications as they are released. Gives user possibilities of motion adjustment, motion post-processing, extensive diagnostic or easy and fast use of predefined profiles.

Over 80 integrated and supported racing and flight games.
