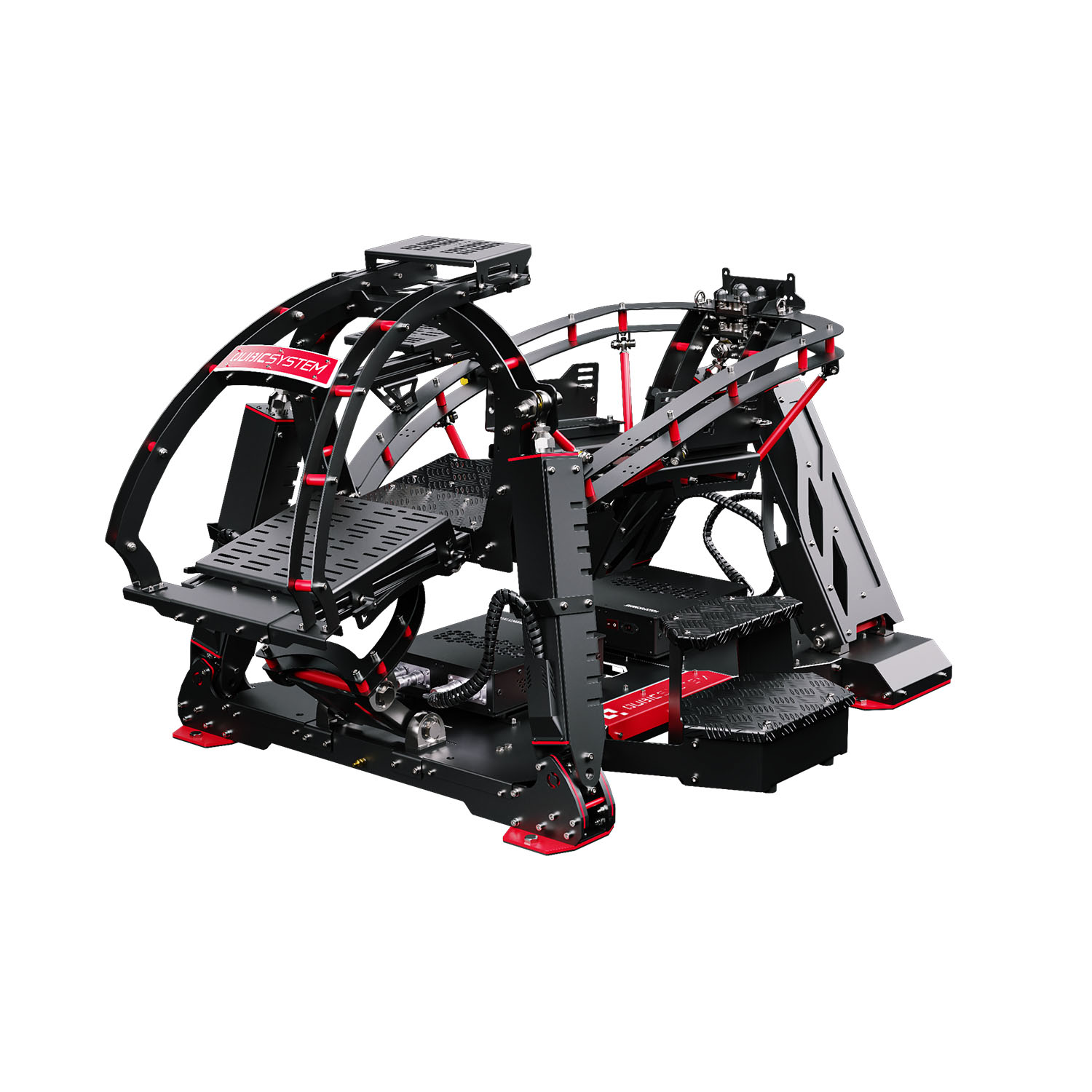

QS-V20

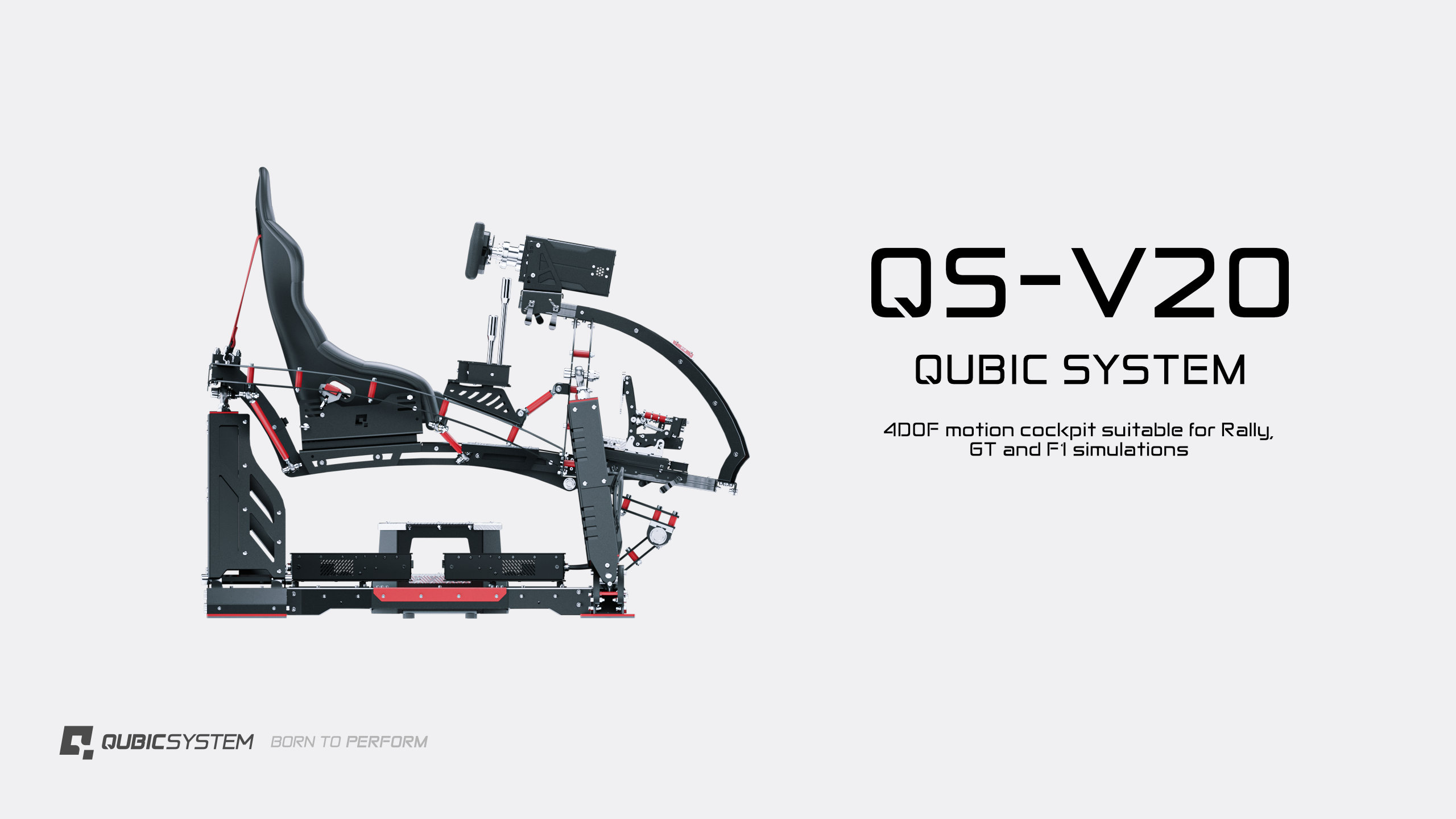

The QS-V20 is an extended 4DOF motion cockpit, designed for pro racing car simulation, dedicated to both drivers training and sim racing enthusiasts. The motion system based on world’s fastest linear actuator’s technology provides incredible levels of vehicle feedback to the driver. This motion platform is suitable for Rally, GT and F1 simulations, also the small footprint and lightweight design allow to fit the machine to every racing room.

16,900.00

(tax and duty not incl.)

QS-V20

The QS-V20 is an extended 4DOF motion cockpit, designed for pro racing car simulation, dedicated to both drivers training and sim racing enthusiasts. The motion system based on world’s fastest linear actuator’s technology provides incredible levels of vehicle feedback to the driver. This motion platform is suitable for Rally, GT and F1 simulations, also the small footprint and lightweight design allow to fit the machine to every racing room.

16,900.00

*Price includes the entire 3DOF set with brackets for actuators

* Price includes the entire 3DOF set

(tax and duty not incl.)

FIND DISTRIBUTOR IN YOUR COUNTRY

feeltherealmotion

BUILT TO DELIVER

ADVANCED 4DOF MOTION SIMULATOR

The QS-V20 redefines what’s possible in the world of motion simulation. Compact, precise and intensely dynamic, it bridges the gap between high-end sim racing and professional-grade driver training devices. Powered by cutting-edge linear actuator technology, it doesn’t just move with speed, it moves with purpose.

This device translates game telemetry into high-resolution motion feedback, letting you feel every nuance-from subtle engine vibrations and tire slip to dynamic G-force shifts. Thanks to real-time movement, the information transmitted by QS-V20 helps serious sim racers stay right at the edge of the grip.

BUILT TO DELIVER

ADVANCED 4DOF MOTION SIMULATOR

The QS-V20 redefines what’s possible in the world of motion simulation. Compact, precise and intensely dynamic, it bridges the gap between high-end sim racing and professional-grade driver training devices. Powered by cutting-edge linear actuator technology, it doesn’t just move with speed, it moves with purpose.

The QS-V20 translates game telemetry into high-resolution motion feedback, letting you feel every nuance-from subtle engine vibrations and tire slip to dynamic G-force shifts. Thanks to real-time movement, the information transmitted by QS-V20 helps serious sim racers stay right at the edge of the grip.

QS V20

4DOF WITH
TRACTION LOSS

FEEL THE REAL MOTION

Thanks to its construction, the QS-V20 four-actuator system provides 4DOF – four degrees of freedom: Heave, Pitch, Roll, Yaw.

The Yaw Axis, whose center of rotation is at the front of the cockpit, provides the ability to simulate, among other things, a vehicle’s oversteer skid, which gives the driver key information on the predictability of driving at the limit of grip and the behavior of the car’s rear axle.

In flight simulators, the YAW axis plays a key role in training during takeoffs and landings, where it is necessary to compensate for torsional moment (especially in piston-engine planes), during crosswind and in emergency situations such as thrust asymmetry in multi-engine aircraft.

INDUSTRIAL-GRADE LINEAR ACTUATORS

QUBIC SYSTEM PREMIUM QUALITY

At the heart of the 4DOF motion cockpit QS-V20 are Qubic System’s high-speed linear actuatorsQS-220, engineered specifically for simulation environments that demand fast, repeatable and clean motion. These actuators are capable of delivering highly detailed motion cues, capturing both large chassis movements and subtle surface feedback with exceptional clarity.

Maximum Velocity: Up to 900 mm/s
Acceleration: Up to 0.88G
Vibration Feedback Range: 0–100 Hz

COMPACT FORM

LIGHTWEIGHT DESIGN, PEAK EFFICIENCY

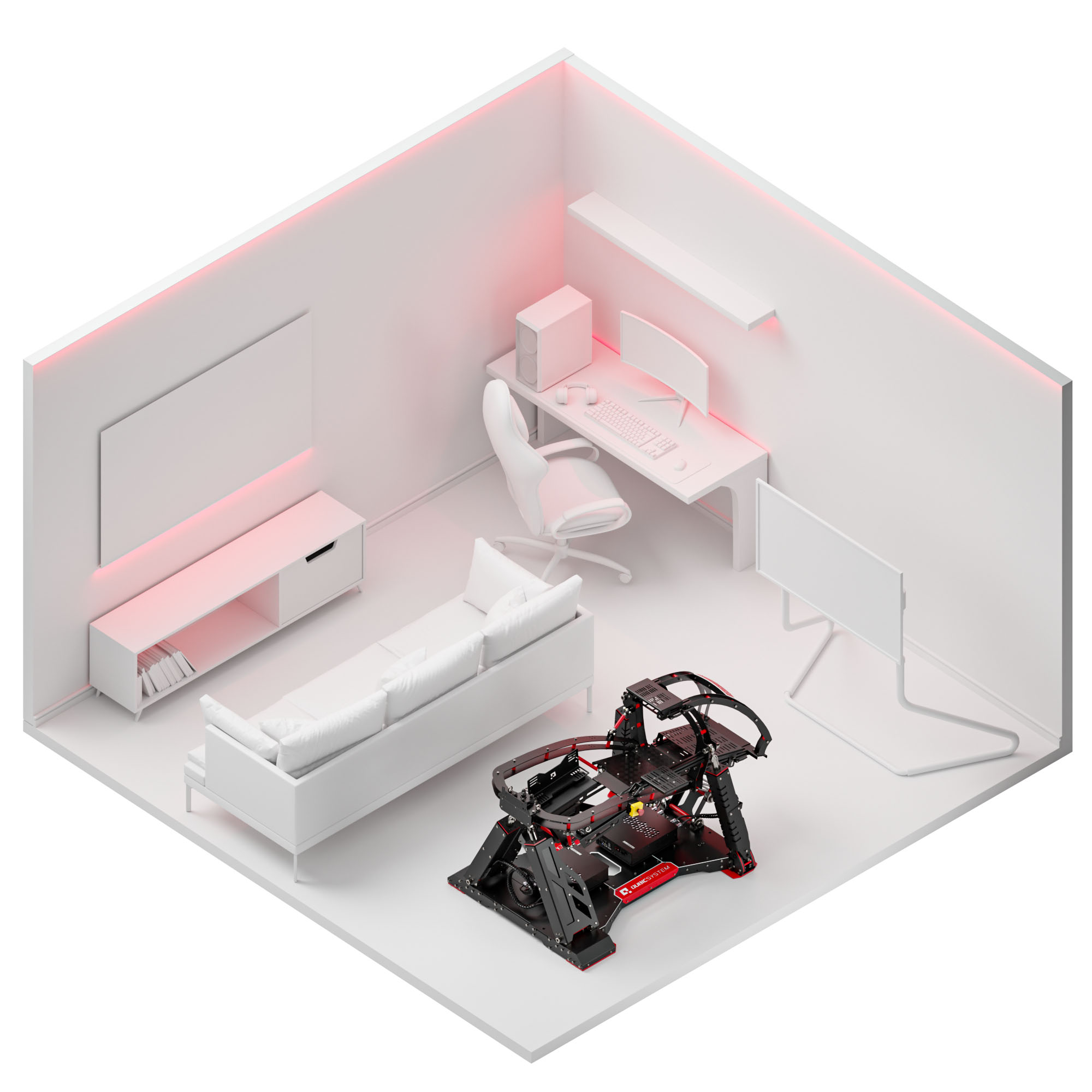

The QS-V20 traction loss platform packs serious performance into a compact build that’s easy to fit into almost any space – from a sim racing man cave to a spare room or studio corner. You don’t need a dedicated room to run a professional setup.

It’s the perfect solution for people who don’t want to compromise when it comes to sim racing or flight simulation.

QS V20 room 00

“In terms of raw immersion, this is on another level.”

Boosted Media

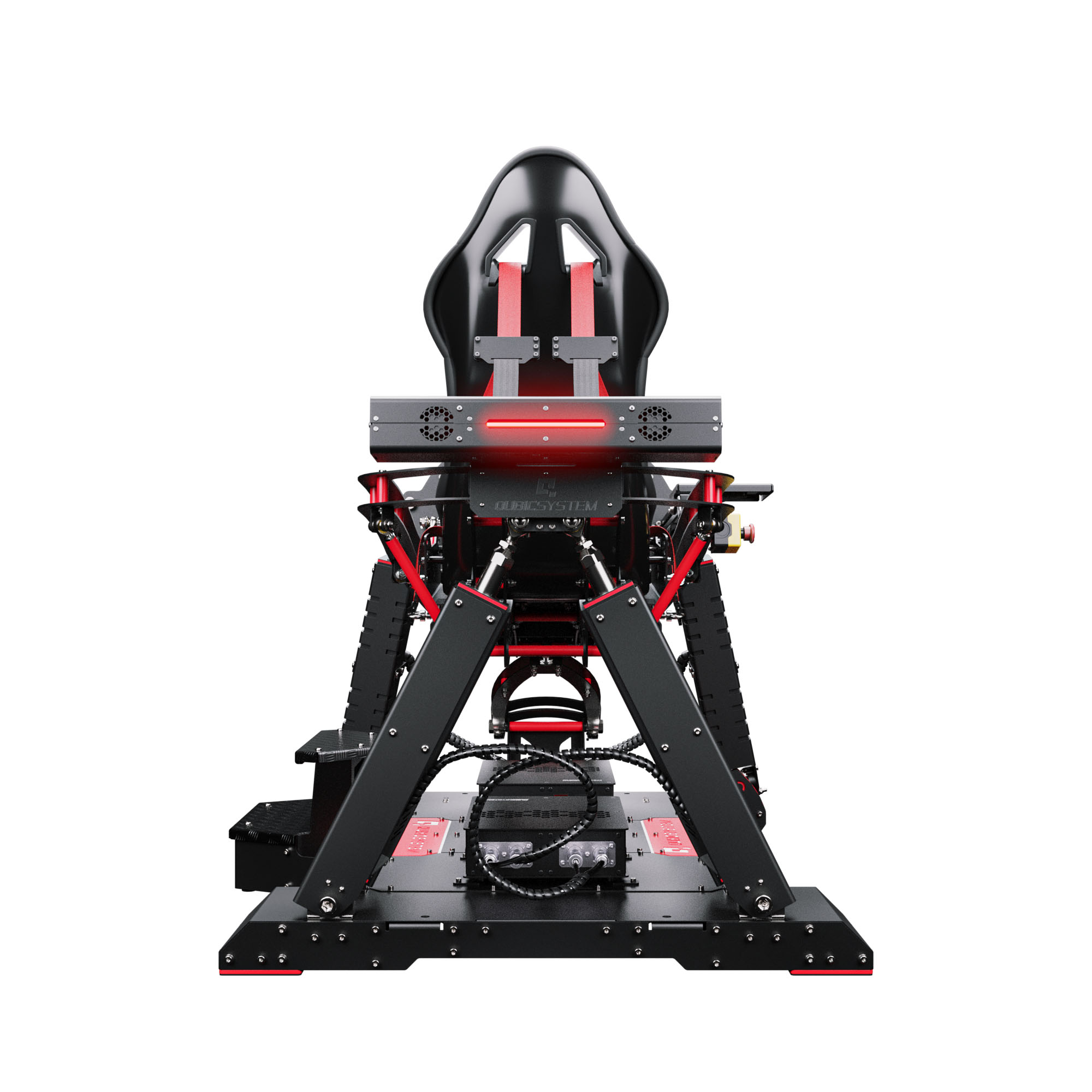

QS V20 BT1 02

QS-BT1 COMPATIBILITY

TAKE IMMERSION TO THE NEXT LEVEL

The QS-V20 traction loss platform packs serious performance into a compact build that’s easy to fit into almost any space – from a sim racing man cave to a spare room or studio corner. You don’t need a dedicated room to run a professional setup.

It’s the perfect solution for people who don’t want to compromise when it comes to sim racing or flight simulation.

INTEGRATES SEAMLESSLY

WITH YOU AND YOUR GEAR

No matter if you race GT, formula, or rally, the QS-V20 4DOF motion platform is ready to slot into your setup. It works smoothly with top-tier direct drive wheels, pedals, and sim gear, so there’s no need to rethink your hardware.

Dial in your exact driving position with adjustable mounts for both wheel and pedals. It’s built to move with you. More comfort, better posture, longer sessions. Simple as that. The QS-V20 gives you the freedom to build your rig your way.

Learn how to find perfect GT style seating position HERE.

Adjustable elements:

  • Desk with mounting points
  • Racing seat brackets
  • Pedal bracket

QS-V20 COCKPIT

SET INCLUDES

Complete motion rig setup with QS-220 actuators, frame, controller, software, brackets, and all key accessories – ready to race.

  • 2× QS-220 Motion Set

  • Dedicated upper and bottom frame
  • Motion controller
  • Qubic Manager / ForceSeatPM software license

  • Complete cable set
  • Adjustable brackets for steering wheel, racing seat, and pedals
  • Bracket to mount QS-BT1 (belt tensioner to be purchased separately)

  • Desk with mounting points
  • MOTION-LOCK Switch

  • Entry step

COMMUNITY EXAMPLE

FAQ

Yes, it’s designed for pro driver training and demanding commercial applications.
Rally, GT, F1, and other racing formats. Flight simulator enthusiasts will also appreciate the QS-V20’s unique features in training.
115–230V AC, single phase with ground.. More details are presented in Product Card.
The maximum supported payload is 150 kg (330.7 lb) for the basic QS-V20 platform without additional accessories.
Around 60 dB during typical gameplay; varies by mode and load.
You can find a full list of games that are supported by the QS-V20 HERE.

The QS-V20 is based on the fastest QS-220 linear actuators.

Yes, the platform fully supports VR technology, offering immersive experiences in racing and flight simulations. Additionally, the VR HeadWay eliminates issues like out-of-sync head movements. READ MORE
Yes, Qubic Manager software is required and can be downloaded HERE. The QS-V20 serial number is needed for activation and profile setup.

Qubic Manager license is free of charge.

We provide devices through authorised distributor network. You can find your local distributor HERE.

The set includes all the accessories necessary to create a driving or flight simulator:

  • QS-V20 Motion Platform
  • USB and power cables
  • Nuts and Bolts required for assembly
  • Product Manual
  • License: Qubic Manager (software)
We offer motion platforms of the highest quality, which are characterized by solid workmanship and very low failure rate.

The warranty period for the device is 2 years for personal use and 1 year for commercial use.

Of course, it is possible to integrate QS-V20 with QS-BT1. Bracket to attach QS-BT1 is already provided with QS-V20 but you have to purchase belt tensioner separately.

VIDEO REVIEWS

PRODUCT DETAILS

GENERAL SPECIFICATION
PAYLOAD
Architecture 4DOF with Traction Loss
Payload 150 kg | 330.7 lb (basic QS-V20 - no accessories)
Product weight 280 kg | 617.3 lb
MAIN DIMENSIONS
Total lenght 1716 mm | 67.55 in
Total width 1195 mm | 47.04 in
Total height 1020 mm | 40.15 in
You can find more detailed information in the product card
Tools & Downloadables Product Card User Manual Download software Supported Games

IN-HOUSE SOFTWARE

EVEN MOST ADVANCED HARDWARE IS NOTHING WITHOUT GOOD SOFTWARE

Qubic Manager is a in-house professional and specialized software for motion platforms. It is plug-and-play compatible with all major racing and flight titles on PC and is continually updated to support new titles as they are released. The Qubic Manager is a powerful engine, yet it’s simple to use, allowing you to easily adjust levels of motion, bumps, roll, and pitch with a click of a button.

qubic system vr

VR READY

VIRTUAL REALITY WITH MOTION COMPENSATION

Our software is ready to embrace virtual reality. This means that users can enjoy a complete and authentic simulation experience without integration hassles, thanks to perfect compatibility with VR technology. With Qubic System’s VR Ready software, simulations become more immersive than ever.

PROUDLY MADE IN POLAND

OUR PRODUCTS ARE BUILT WITH CARE AND ATTENTION TO DETAIL

By keeping production local, we ensure high-quality craftsmanship and avoid mass-produced, generic solutions. This way, you get a product that’s durable, reliable, and made to perform at the highest level.
